Current product range

Motion systems
for every outboard.

Explore the current Lanshine Marine range of power trim assemblies and hydraulic jack plates. Each model is matched to its catalog entry and technical data.

Download product catalog

Power trim assemblies

Electric-hydraulic lift for precise outboard control.

Integrated power trim assemblies for outboard applications, with sealed hydraulic performance, manual release and impact protection.

D3001BOriginal D3001B
D3001B manual hydraulic outboard tilt and trim unit

Manual Hydraulic Outboard Tilt & Trim Unit

Manually actuated hydraulic tilt and trim unit for 20-40 HP two-stroke and four-stroke outboards.

View details Catalog
D3001COriginal D3001C
D3001C manual hydraulic outboard tilt and trim unit

Manual Hydraulic Outboard Tilt & Trim Unit

Manually actuated hydraulic tilt and trim unit for 60 HP two-stroke and four-stroke outboards.

View details Catalog
D3001Original D3001
D3001 hydraulic outboard power tilt and trim plate

Hydraulic Outboard Power Tilt & Trim Plate

12V hydraulic outboard power tilt and trim plate for 10-90 HP motors, with 1,500 kg maximum trim force and precise fine adjustment.

View details Catalog
D4001AOriginal F4001A

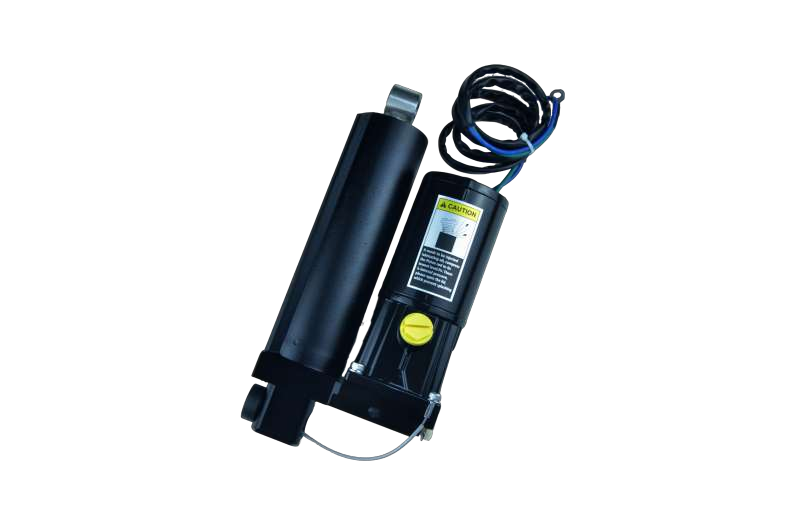

D4001A power trim assembly for Yamaha outboard applications

Hydraulic Outboard Power Tilt & Trim Assembly

Compact Yamaha-compatible power trim assembly for 20-45 HP outboards.

View details Catalog

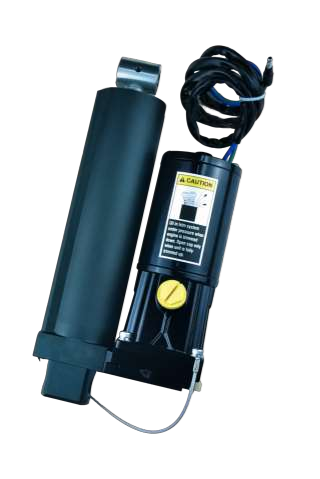

D6001AOriginal F6001A
D6001A power trim assembly for Mercury outboard applications

Hydraulic Outboard Power Tilt & Trim Assembly

Mercury-compatible power trim assembly for 30-60 HP outboards.

View details Catalog

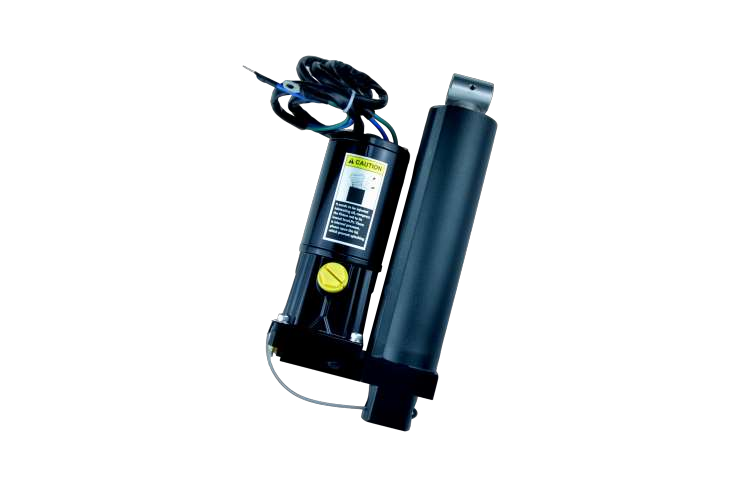

D6001BOriginal F6001B
D6001B power trim assembly for Yamaha outboard applications

Hydraulic Outboard Power Tilt & Trim Assembly

Yamaha-compatible power trim assembly for 40-70 HP outboards.

View details Catalog
D6001COriginal F6001C

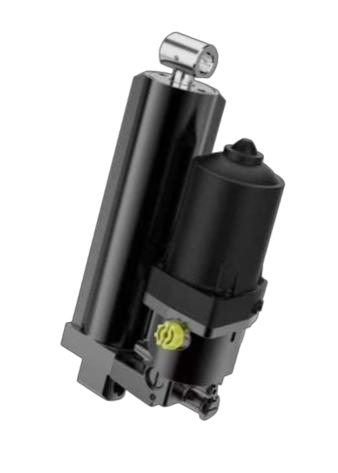

D6001C power trim assembly for Mercury outboard applications

Hydraulic Outboard Power Tilt & Trim Assembly

Mercury-compatible power trim assembly for 75-115 HP outboards.

View details Catalog
D11501AOriginal F11501A

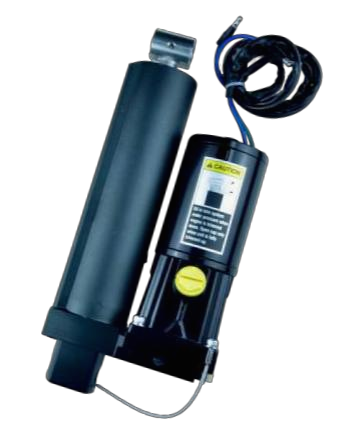

D11501A power trim assembly for Mercury outboard applications

Hydraulic Outboard Power Tilt & Trim Assembly

Higher-force Mercury-compatible power trim assembly for 75-125 HP applications.

View details Catalog

Hydraulic jack plates

Setback and lift built around the transom.

Hydraulic jack plates for positioning outboard motors across a broad horsepower range, with service-friendly manual release and corrosion-conscious construction.

DM001AOriginal DM001A
DM001A electric-hydraulic outboard jack plate

Electric-Hydraulic Outboard Jack Plate

Compact 12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, with 4-inch setback and 160 mm lift travel.

View details Catalog
DM001BOriginal DM001B
DM001B kick-back electric-hydraulic outboard jack plate

Kick-Back Electric-Hydraulic Outboard Jack Plate

12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, combining 160 mm lift travel with a 43-degree kick-back angle.

View details Catalog

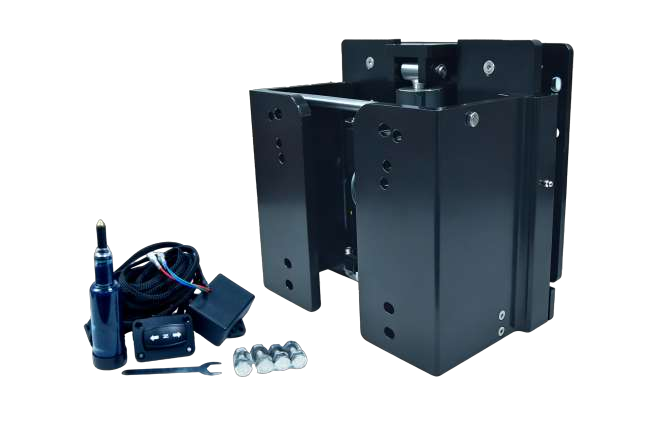

DL001AOriginal JPH1500
DL001A hydraulic jack plate for 10-150 HP outboard applications

6.69″ Electric-Hydraulic Outboard Jack Plate (150 HP)

6.69″ stroke hydraulic jack plate for 10-150 HP outboard motors.

View details Catalog

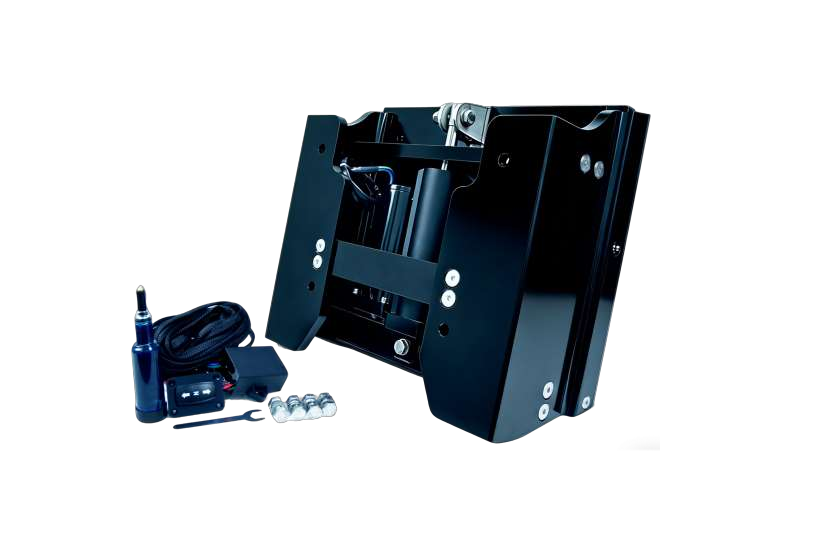

DL002AOriginal JPH3500
DL002A electric-hydraulic outboard jack plate for up to 300 HP applications

6.1″ Electric-Hydraulic Outboard Jack Plate (300 HP)

6.1″ stroke hydraulic jack plate for 10-300 HP outboard motors.

View details Catalog

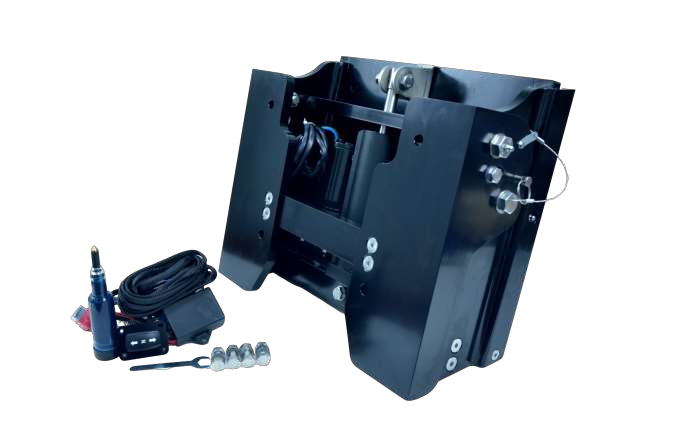

DL003AOriginal JPH3500K
DL003A electric-hydraulic kick-back jack plate for up to 300 HP applications

6.1″ Electric-Hydraulic Kick-Back Jack Plate (300 HP)

6.1″ stroke jack plate with 0-30 degree tilt and a built-in safety latch.

View details Catalog

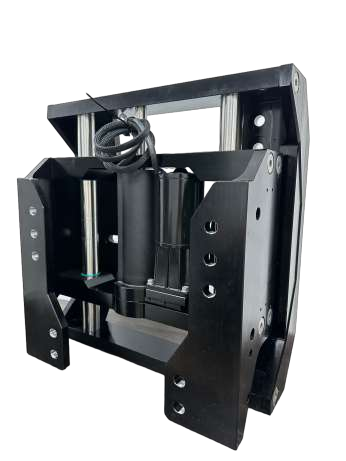

DL004AOriginal JPH6000
DL004A electric-hydraulic outboard jack plate for up to 600 HP applications

5.5″ Electric-Hydraulic Outboard Jack Plate (600 HP)

5.5″ stroke hydraulic jack plate for 10-600 HP outboard motors.

View details Catalog
