D3001 · Original D3001

Hydraulic Outboard Power Tilt & Trim Plate
D3001

12V hydraulic outboard power tilt and trim plate for 10-90 HP motors, with 1,500 kg maximum trim force and precise fine adjustment.

Request a quote View catalog
D3001 hydraulic outboard power tilt and trim plate
D3001Marine-grade motion assembly

Product imagery

Reference views for D3001, matched to the current product code and catalog entry.

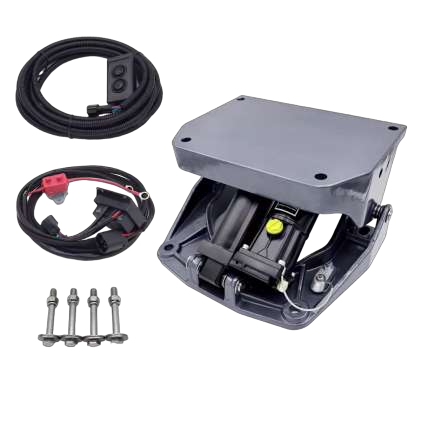

D3001 hydraulic outboard power tilt and trim plate - view 1
Product view
D3001 hydraulic outboard power tilt and trim plate - view 2
Opening reinforcement
D3001 hydraulic outboard power tilt and trim plate - view 3
Reserved hole
D3001 hydraulic outboard power tilt and trim plate - view 4
Electric-hydraulic lift block
D3001 hydraulic outboard power tilt and trim plate - view 5
Anti-corrosion anode block

Engineering reference

Dimensions.
Clearly presented.

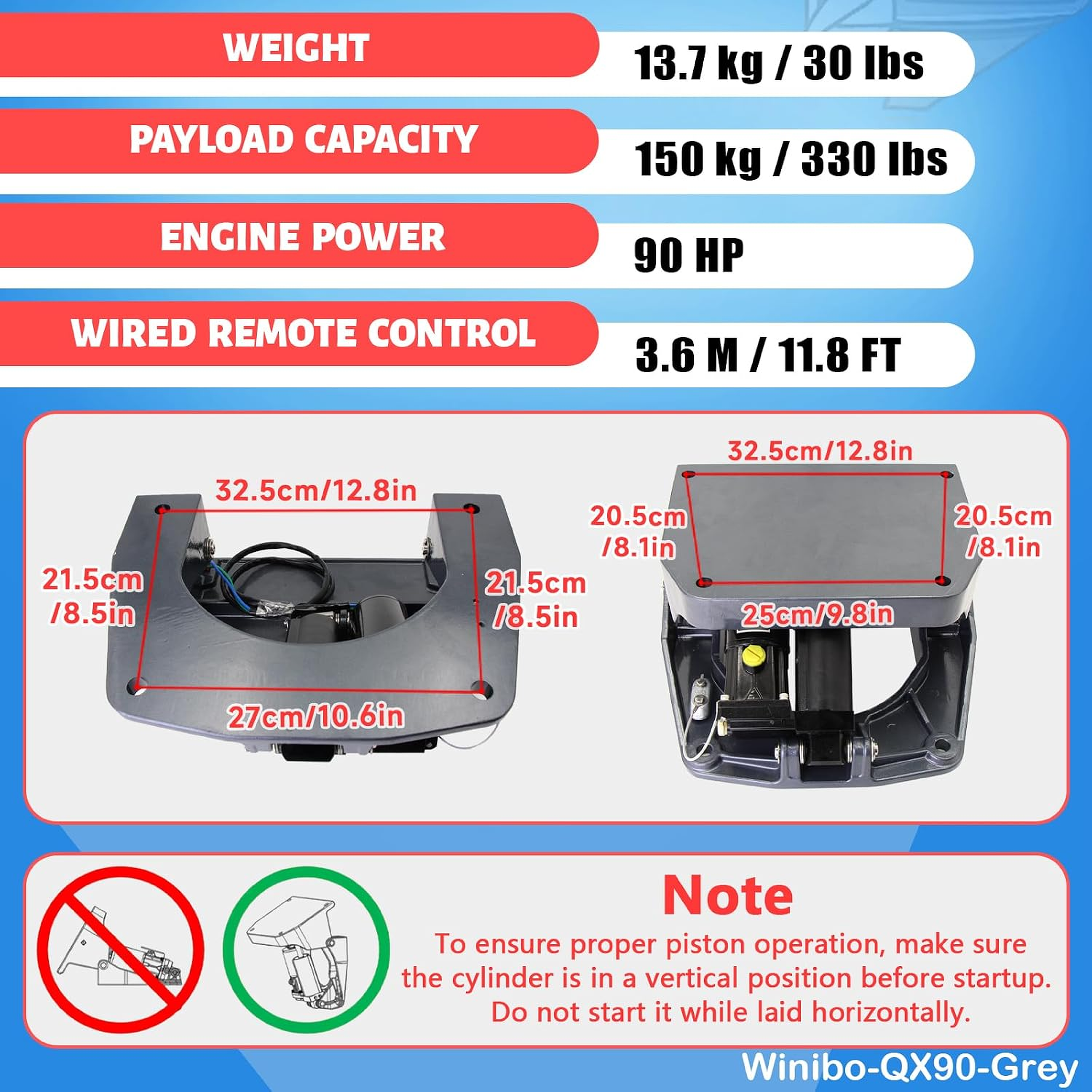

High-resolution dimensional reference for D3001. Open the original-size drawing for detailed review and confirm final production requirements with our engineering team.

Open full-resolution drawing View product catalog
D3001 high-resolution engineering dimensional reference
D3001High-resolution dimensional reference · Confirm against approved production drawings before manufacture

Product overview

Electric-hydraulic lift for precise outboard control.

Integrated power trim assemblies for outboard applications, with sealed hydraulic performance, manual release and impact protection. 12V hydraulic outboard power tilt and trim plate for 10-90 HP motors, with 1,500 kg maximum trim force and precise fine adjustment.

Compatible applications

  • Mercury, Yamaha, Suzuki, Honda and other global brands
  • 10-90 HP outboard applications

Reference notes

  • Compatibility subject to OEM part number, mounting pattern and model-year verification
  • Electric-hydraulic lift block
  • Anti-corrosion anode block

Technical specifications

Voltage12V
Maximum trim force1,500 kg
Outboard motor horsepower10-90 HP
Waterproof ratingIP68
Zero leakageYes
Manual bleed valveYes
Impact protectionYes
High-pressure fine adjustmentYes
Pre-drilled hole0.66 in / 16.8 mm
Opening thickness0.79 in / 20 mm
MaterialAluminum alloy / stainless steel
Color optionsYamaha Grey / Mercury Black

Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.

View catalog page 4
