D4001A · Original F4001A

Hydraulic Outboard Power Tilt & Trim Assembly
D4001A

Compact Yamaha-compatible power trim assembly for 20-45 HP outboards.

Request a quote View catalog
D4001A power trim assembly for Yamaha outboard applications
D4001AMarine-grade motion assembly

Product imagery

Reference views for D4001A, matched to the current product code and catalog entry.

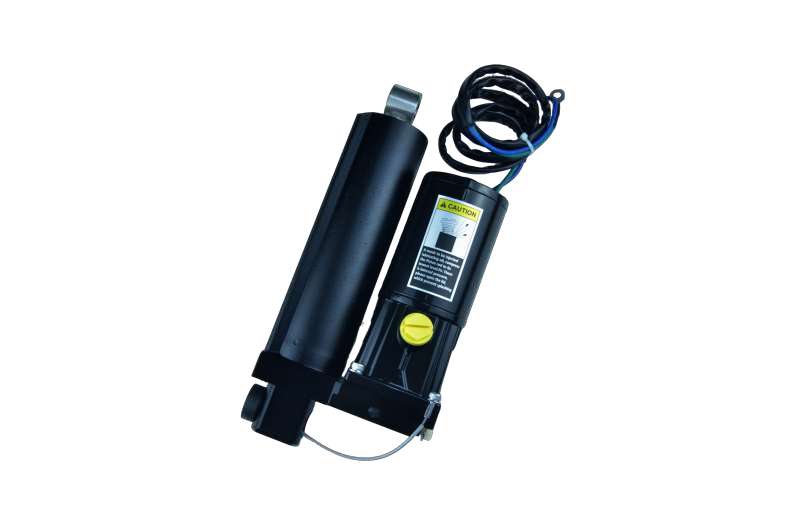

D4001A power trim assembly for Yamaha outboard applications - view 1
Product view
D4001A power trim assembly for Yamaha outboard applications - view 2
Performance data

Engineering reference

Dimensions.
Clearly presented.

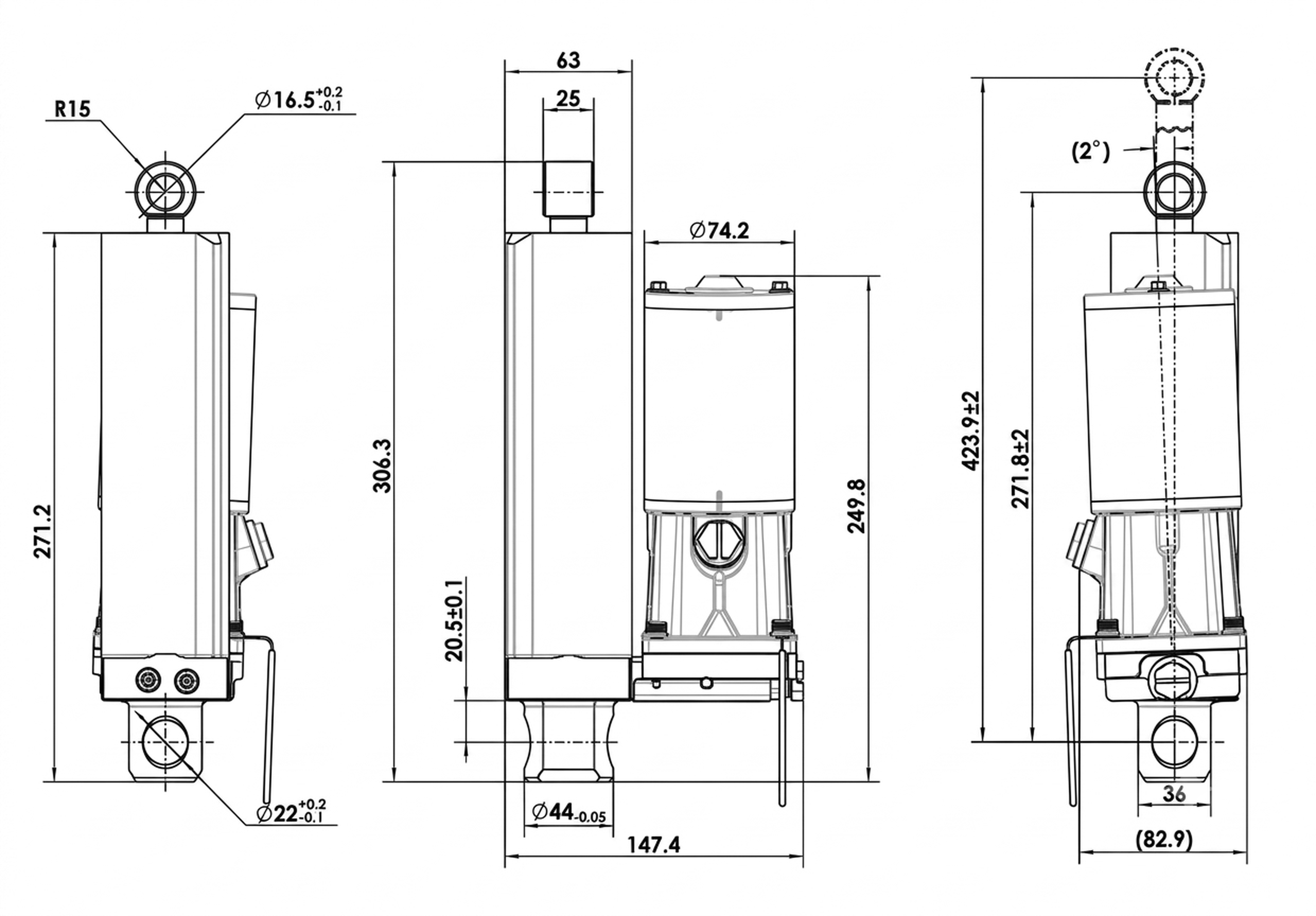

High-resolution dimensional reference for D4001A. Open the original-size drawing for detailed review and confirm final production requirements with our engineering team.

Open full-resolution drawing View product catalog
D4001A high-resolution engineering dimensional reference
D4001AHigh-resolution dimensional reference · Confirm against approved production drawings before manufacture

Product overview

Electric-hydraulic lift for precise outboard control.

Integrated power trim assemblies for outboard applications, with sealed hydraulic performance, manual release and impact protection. Compact Yamaha-compatible power trim assembly for 20-45 HP outboards.

Compatible applications

  • Yamaha 2-stroke 25-40 HP
  • Yamaha 4-stroke 20-45 HP

Reference notes

  • 65W-43800 series
  • 67C-43800 series

Technical specifications

Maximum fine-adjustment force2,000-2,500 kg
Outboard motor horsepower20-45 HP
Voltage12V / 24V
Waterproof ratingIP68
MaterialAluminum alloy / stainless steel
ColorBlack
Manual release valveYes
Impact protectionYes
Anti-beaching protectionYes
Zero pressure lossYes
High-pressure fine adjustmentYes

Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.

View catalog page 6
