D6001C · Original F6001C
Hydraulic Outboard Power Tilt & Trim Assembly
D6001C
Mercury-compatible power trim assembly for 75-115 HP outboards.

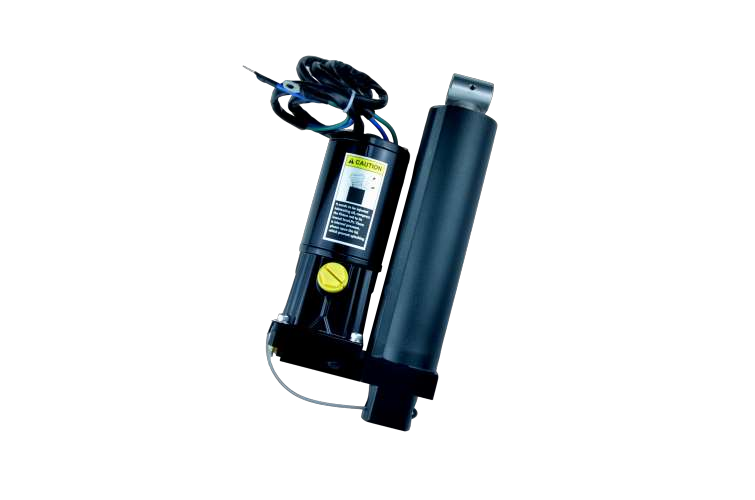

Product imagery
See the assembly
in detail.
Reference views for D6001C, matched to the current product code and catalog entry.

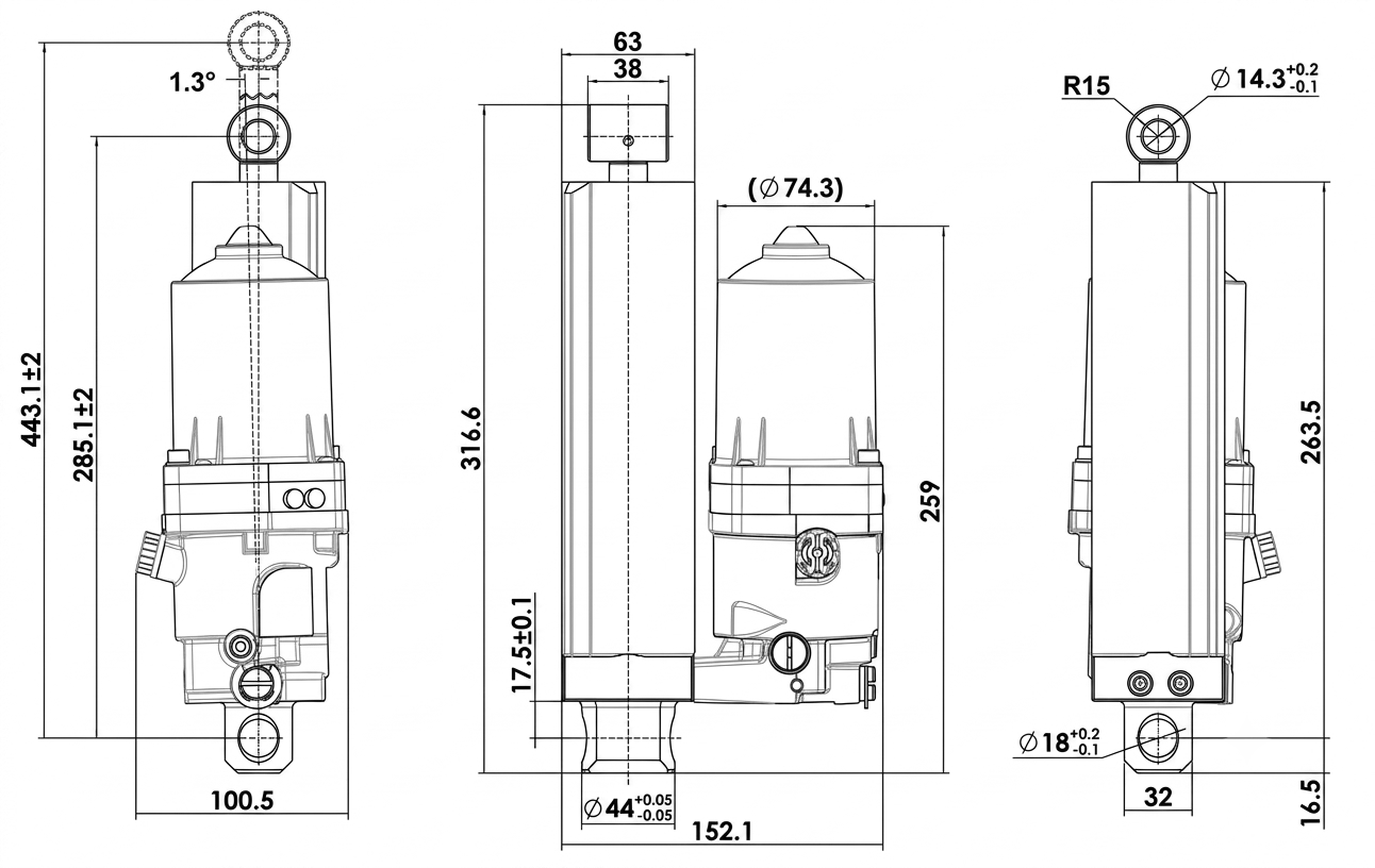

Engineering reference
Dimensions.
Clearly presented.
High-resolution dimensional reference for D6001C. Open the original-size drawing for detailed review and confirm final production requirements with our engineering team.
Product overview
Electric-hydraulic lift for precise outboard control.
Integrated power trim assemblies for outboard applications, with sealed hydraulic performance, manual release and impact protection. Mercury-compatible power trim assembly for 75-115 HP outboards.
Compatible applications
- Mercury 4-stroke 75-115 HP
Reference notes
- 8M0090335 / 8M017181 (new model)
- 898447T1 / 830250T5 (old model)
Technical specifications
Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.
View catalog page 6D6001C selection FAQ
Questions before ordering.
Use these answers as a selection guide, then confirm the final engine and mounting details with our team.
Is D6001C compatible with my outboard?+
The current reference applications are Mercury 4-stroke 75-115 HP. Confirm the exact engine model, model year, mounting pattern and installation dimensions with our team before ordering.
What information is needed to review D6001C?+
Please provide the outboard brand, exact model, model year, horsepower, system voltage, mounting dimensions and any available OEM reference number. Photos of the current installation can also help the review.
Where can I review the dimensions and technical data for D6001C?+
Use the full-resolution engineering reference and catalog page 6 on this page. Final production requirements should still be confirmed before manufacture.
