DL002A · Original JPH3500

6-inch Electric-Hydraulic Outboard Jack Plate (300 HP)
DL002A

6.10 in stroke hydraulic jack plate for 10-300 HP outboard motors.

Request a quote View catalog
DL002A electric-hydraulic outboard jack plate for up to 300 HP applications
DL002AMarine-grade motion assembly

Engineering reference

Dimensions.
Clearly presented.

High-resolution dimensional reference for DL002A. Open the original-size drawing for detailed review and confirm final production requirements with our engineering team.

Open full-resolution drawing View product catalog

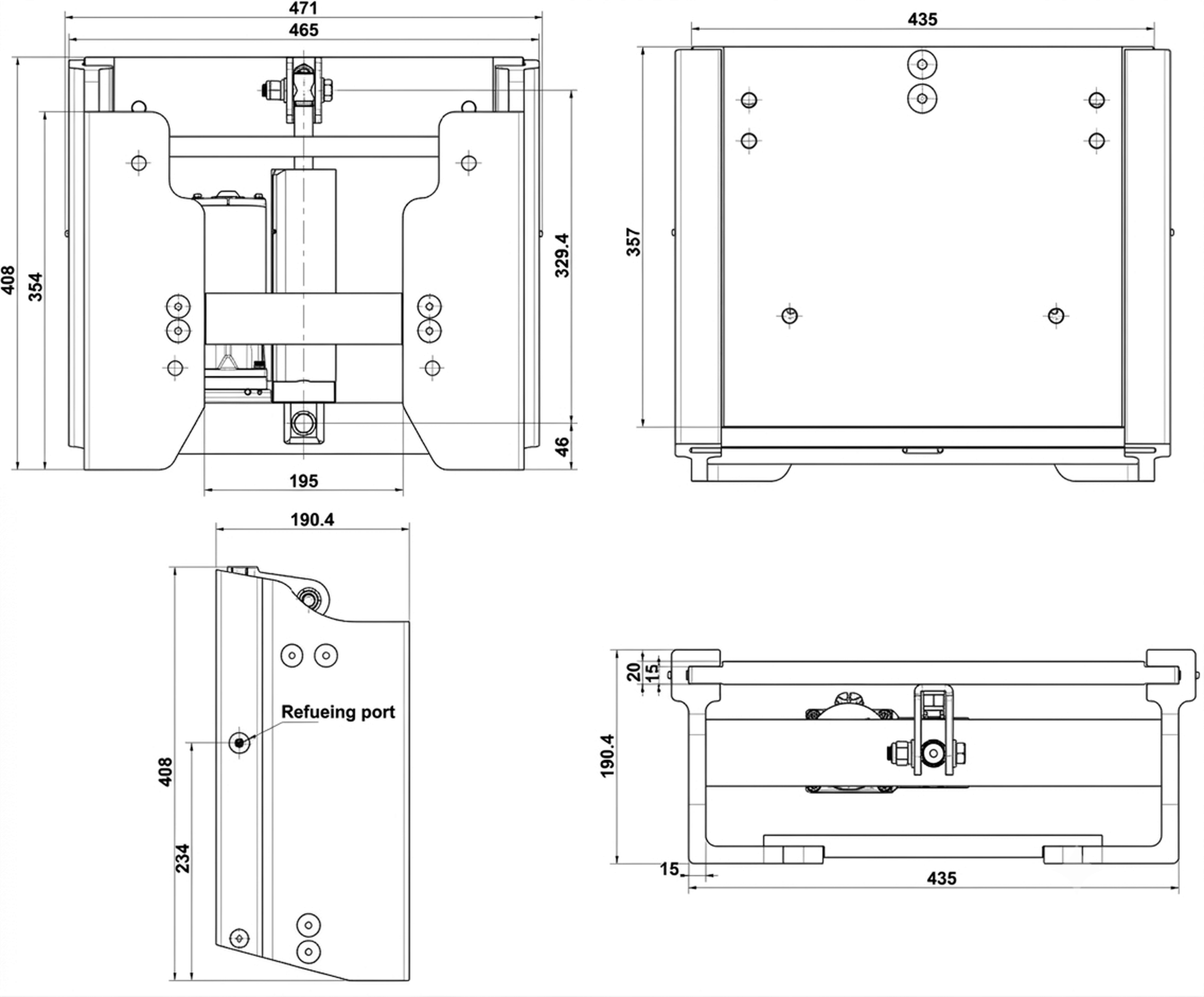

DL002A high-resolution engineering dimensional reference
DL002AHigh-resolution dimensional reference · Confirm against approved production drawings before manufacture

Product overview

Setback and lift built around the transom.

Hydraulic jack plates for positioning outboard motors across a broad horsepower range, with service-friendly manual release and corrosion-conscious construction. 6.10 in stroke hydraulic jack plate for 10-300 HP outboard motors.

Compatible applications

  • Mercury, Yamaha, Suzuki, Honda and other global brands
  • 10-300 HP outboard applications

Reference notes

  • Compatibility subject to OEM part number, mounting pattern and model-year verification

Technical specifications

Voltage12V / 24V
Maximum jack plate force4,000 kg
Outboard motor horsepower10-300 HP
Stroke / maximum lifting height6.10 in / 155 mm
Panel thickness0.59 in / 15 mm
Pre-drilled hole0.55 in / 14 mm
Waterproof ratingIP68
MaterialPremium 7009 aviation-grade aluminum alloy
ColorBlack
Anti-corrosion protectionYes
Manual release valveYes
Zero pressure lossYes

Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.
