DL004A · Original JPH6000

6-inch Electric-Hydraulic Outboard Jack Plate (600 HP)
DL004A

5.5 in stroke hydraulic jack plate for 10-600 HP outboard motors.

Request a quote View catalog
DL004A electric-hydraulic outboard jack plate for up to 600 HP applications
DL004AMarine-grade motion assembly

Product imagery

Reference views for DL004A, matched to the current product code and catalog entry.

DL004A electric-hydraulic outboard jack plate for up to 600 HP applications - view 1
Product view
DL004A electric-hydraulic outboard jack plate for up to 600 HP applications - view 2
Control kit

Engineering reference

Dimensions.
Clearly presented.

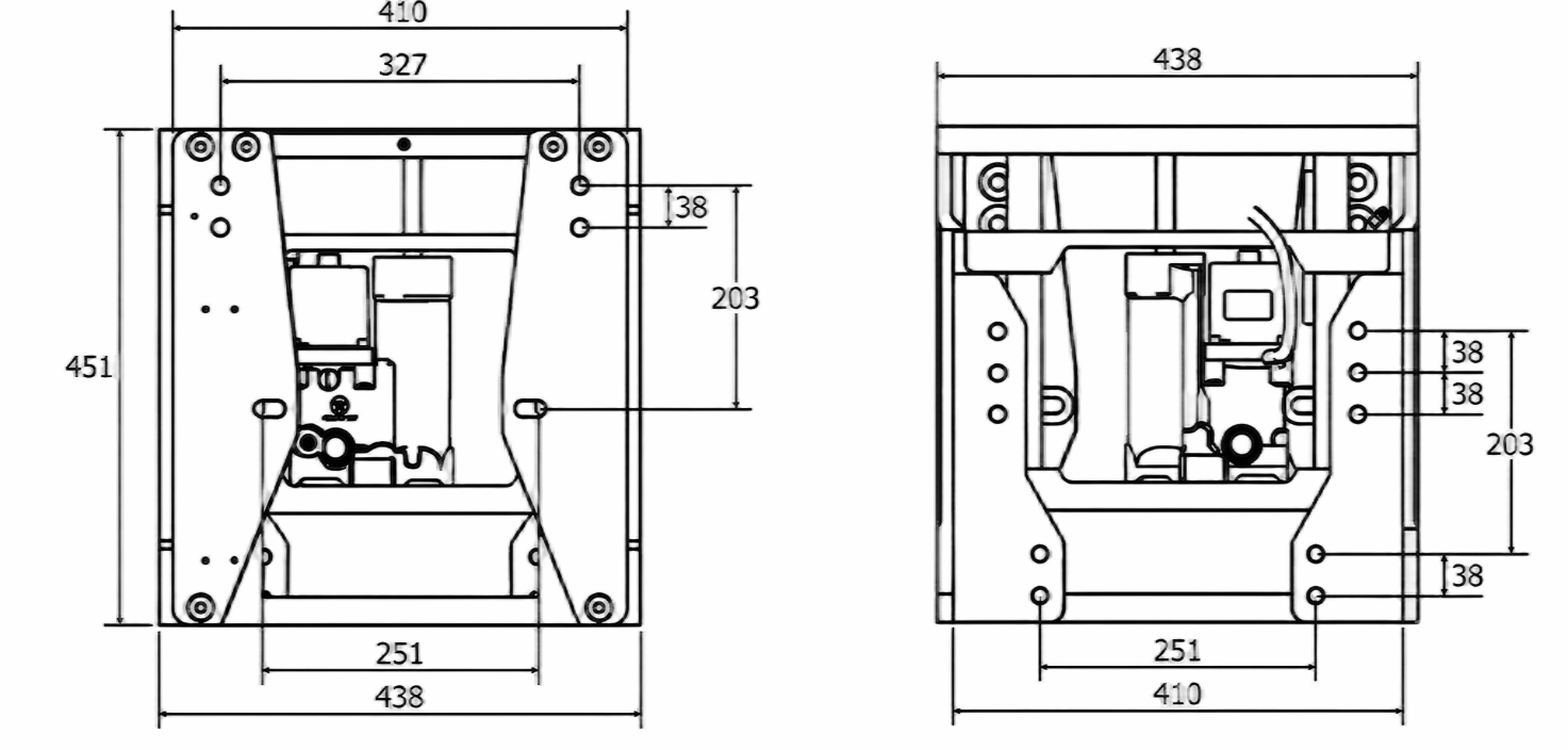

High-resolution dimensional reference for DL004A. Open the original-size drawing for detailed review and confirm final production requirements with our engineering team.

Open full-resolution drawing View product catalog
DL004A high-resolution engineering dimensional reference
DL004AHigh-resolution dimensional reference · Confirm against approved production drawings before manufacture

Product overview

Setback and lift built around the transom.

Hydraulic jack plates for positioning outboard motors across a broad horsepower range, with service-friendly manual release and corrosion-conscious construction. 5.5 in stroke hydraulic jack plate for 10-600 HP outboard motors.

Compatible applications

  • Mercury, Yamaha, Suzuki, Honda and other global brands
  • 10-600 HP outboard applications

Reference notes

  • Compatibility subject to OEM part number, mounting pattern and model-year verification

Technical specifications

Voltage12V / 24V
Maximum jack plate force3,500 kg
Outboard motor horsepower10-600 HP
Stroke / maximum lifting height5.5 in / 140 mm
Panel thickness0.59 in / 15 mm
Pre-drilled hole0.62 in / 16 mm
Waterproof ratingIP68
MaterialPremium 7009 aviation-grade aluminum alloy
ColorBlack
Anti-corrosion protectionYes
Manual release valveYes
Zero pressure lossYes

Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.
